Fully enclosed protection for wiring that must be shielded from dust, drips, contact and interference.

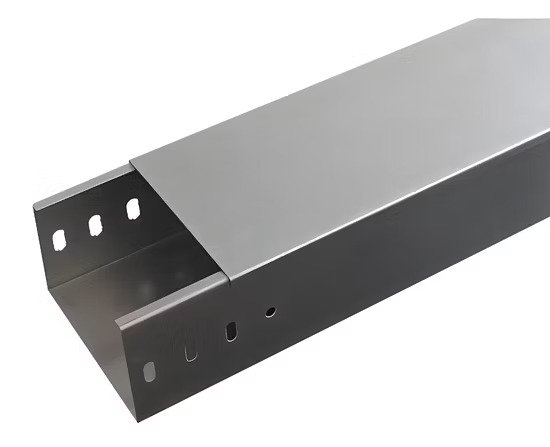

A raceway is an enclosed metal channel with a closing cover — a protected corridor for wiring rather than an open shelf. Where trays expose cables to the environment, trunking seals them away from dust, moisture, mechanical damage and casual contact, and presents a clean, paintable face in finished spaces.

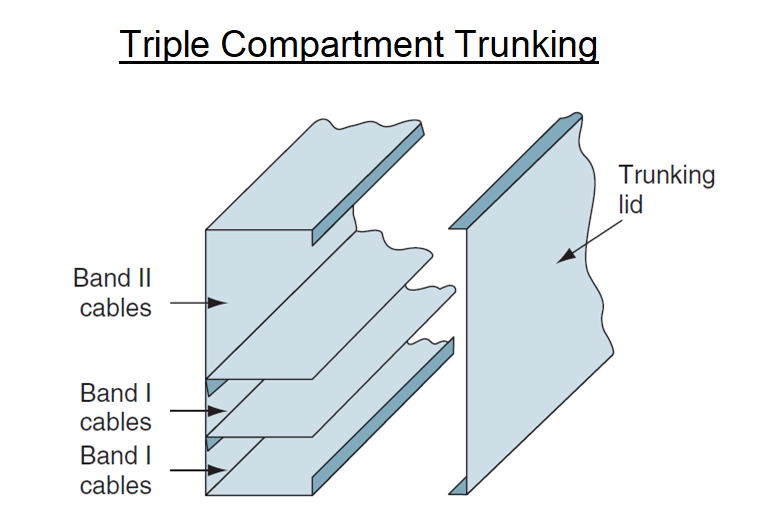

Dividers turn a single trunking body into segregated compartments, letting power and signal cables share one route while maintaining the separation that wiring codes and EMC practice demand.
Metal Hub manufactures raceways and trunking in widths from 50 to 1000 mm and heights from 25 to 100 mm, in sheet thickness 1.6 to 3.0 mm, supplied with covers, dividers, and the matching fittings needed for complete routes.
| Parameter | Range |
|---|---|
| Width | 50 – 1000 mm |
| Height | 25 – 100 mm |
| Collar | 15 – 25 mm |
| Sheet thickness | 1.6 – 3.0 mm |
| Configurations | Plain / with divider(s), with cover |
| Materials | Mild steel, SS, aluminium |
| Finishes | Hot-dip galvanized, powder-coated, enamel painted |
| Parameter | Raceway / trunking | Open tray |
|---|---|---|
| Dust / drip protection | Complete | Partial (with covers) |
| Segregation of services | Built-in with dividers | Separate trays needed |
| Heat dissipation | Lower — derate fills | High |
| Finished-space aesthetics | Best | Industrial |
| Typical duty | Panels rooms, offices, workshops | Plant and utility routes |
A tray is an open support structure; a raceway is a closed channel that fully encloses the wiring. Choose raceways where cables need protection from dust, drips, tampering or where a clean finished appearance matters.
Yes — specify the divider option. The internal barrier maintains segregation between compartments so power and signal services can share a single route within code requirements.
Heavily loaded power cables in enclosed trunking dissipate less heat than in open tray, so fills should be checked against derating tables. Our team verifies fill and derating from your cable schedule at no charge.
Hot-dip galvanized for harsh or outdoor environments, powder-coating for colour-matched interiors, and enamel painting for budget indoor duty.
Part of the Metal Hub cable management range — manufactured on the same line, to the same specification discipline.
