Which finish should I choose?

Pre-galvanized for dry interiors; hot-dip galvanized wherever weather, humidity or chemistry is involved — the post-fabrication dip seals cut edges and welds; powder-coated where colour identification or specific chemical resistance is required.

What decides the sheet thickness?

Load per span. Take the planned cable weight per metre, choose your support span, and read the table — heavier fills need thicker sheet or closer supports. We verify project cases free of charge.

Do trays need to be earthed?

Yes. Bond each run at both ends and across joints. A bonded tray is a protective conductor and EMC screen; an unbonded tray can rise to dangerous potential during a cable fault.

Can you supply matching bends and tees?

Yes — the full accessory system (bends, tees, crosses, reducers, covers, couplers) ships from the same line, in the same finish, so routes assemble without site fabrication.

What widths are available?

50 mm to 1200 mm as standard, in side heights from 25 to 100 mm and thicknesses 1.6 to 6 mm, in 2.5 m lengths or custom lengths against order.

Perforated or ladder — how do I decide?

Mixed power-and-control fills with small cables favour perforated; very heavy feeder corridors favour ladder for ventilation and weight. Many plants use both — we supply either against the same specification sheet.

Cable Tray Support Systems

Name: Cable Tray Support Systems
Brand: Metal Hub (Bharat)

Trays are only as strong as what holds them up — struts, cantilever arms, brackets and base plates engineered as one system.

Overview

The Skeleton Behind Every Tray Route

Every tray load calculation assumes supports at the right interval, with the right stiffness, anchored the right way. Our support and fixing system supplies that assumption as hardware: slotted strut channels in single and double sections, cantilever arms, wall brackets and base plates — all dimensioned to pair with our tray range.

Slotted struts are the system's flexibility: tray arms, hangers and clamps bolt anywhere along the slot without drilling, so levels can be adjusted and future tiers added without touching the building structure again.

Everything ships in matching finishes — pre-galvanized for interiors, hot-dip galvanized for plant and outdoor duty — with the channel nuts, threaded rods and fixing hardware to complete the installation.

Single and double slotted strut channels
Cantilever arms, wall brackets, gusset and base plates
Adjustable — reposition arms without re-drilling
Finishes matched to the tray: pre-galvanized / HDG

Request a Quote Download Catalog

Technical Data

Specifications

System Components

Component	Function
Plain strut channel	Vertical or suspended mounting spine
Double strut channel	Higher-load spines and trapeze hangers
Unistrut wall bracket	Single-tier wall mounting
Double strut wall bracket	Multi-tier wall mounting
Cantilever arms	Carry trays clear of walls and columns
Base / gusset base plates	Floor and ceiling anchorage of struts
Channel nuts & hardware	Position-anywhere fixing along slots

Support Planning Quick Guide

First-pass practice; project spans confirmed against the tray load tables.

Condition	Practice
Standard perforated runs	Supports at 1.5 – 2.0 m
Heavy ladder feeders	Closer spacing or double strut
At bends, tees and drops	Support within 600 mm of the fitting
Vertical risers	Guide plus load support per floor
Multi-tier racks	Trapeze on double strut, heaviest tier lowest

Component Gallery

The Support Family

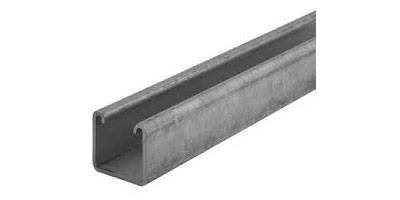

Plain strut channel — Plain slotted strut — the mounting spine.

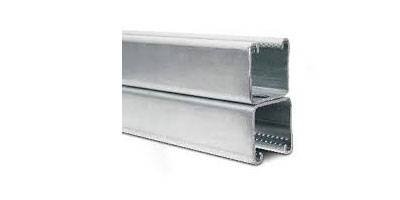

Double strut channel — Double strut for heavy multi-tier duty.

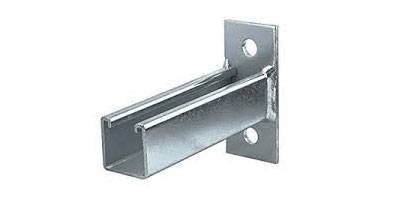

Unistrut wall bracket — Wall bracket for single-tier runs.

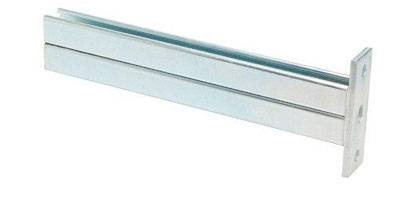

Double strut wall bracket — Double-strut wall bracket for stacked tiers.

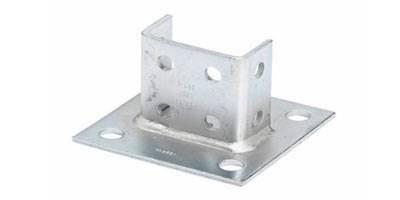

Base plate for double strut — Base plate — floor and ceiling anchorage.

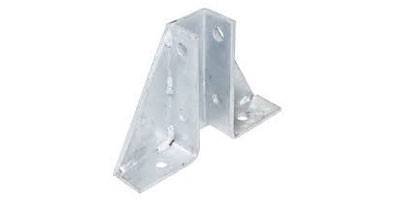

Gusset base plate for moment-loaded struts.

FAQ

Frequently Asked Questions

Why buy supports from the tray manufacturer?

Because span assumptions, hole patterns and finishes then match by design. Mixed-source supports are the usual reason trays sag, joints twist and galvanic couples appear at fixings.

Single or double strut — how do I choose?

Single strut handles standard wall and trapeze duty; double strut takes heavy multi-tier racks and long cantilevers. Send the cable schedule and we size it with the tray quote.

Can tiers be added later?

Yes — that is the value of slotted channel. New arms bolt into the same struts at any level, so adding a tier is a hardware task, not a drilling and repainting project.

What finish should supports have?

The same class as the tray they carry: pre-galvanized indoors, hot-dip galvanized for outdoor and process areas — keeping every metal surface in the run electrochemically compatible.
